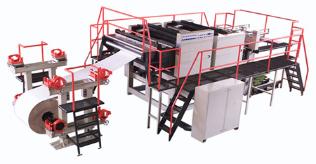

SHEETERS - converts paper or boards from roll form to sheet form. Rolls of
paper or board on the Reel Stands are drawn into the Sheeting Unit where they
are cut into sheets and conveyed by the Overlapping Delivery Section into the
Pile Table for stacking.
paper or board on the Reel Stands are drawn into the Sheeting Unit where they
are cut into sheets and conveyed by the Overlapping Delivery Section into the
Pile Table for stacking.
Model 1400 (55") Model 1650 (65")
Maximum reel diameter:
using h-type 4-roll unwind 1200mm (47") 1200mm (47")
using 2-roll shaftless unwind 1650mm (65") 1650mm (65")
Maximum web width:
using h-type 4-roll unwind 1400mm (55") 1400mm (55")
using 2-roll shaftless unwind 1650mm (65") 1650mm (65")
Maximum linear web speed:
cutting 1 roll of 200gsm board 300 meters per minute
Maximum cutting frequency 400 cuts per minute
Maximum knife load 500 GSM 600 GSM
Sheet length range 400mm-1400mm 400mm-1650mm
Maximum gross pile height 1500mm (60") 1500mm (60")
Maximum gross pile weight 1500kg 2000kg
Electrical power load 22 kW 30 kW
Maximum reel diameter:
using h-type 4-roll unwind 1200mm (47") 1200mm (47")
using 2-roll shaftless unwind 1650mm (65") 1650mm (65")
Maximum web width:
using h-type 4-roll unwind 1400mm (55") 1400mm (55")
using 2-roll shaftless unwind 1650mm (65") 1650mm (65")
Maximum linear web speed:
cutting 1 roll of 200gsm board 300 meters per minute
Maximum cutting frequency 400 cuts per minute
Maximum knife load 500 GSM 600 GSM
Sheet length range 400mm-1400mm 400mm-1650mm
Maximum gross pile height 1500mm (60") 1500mm (60")
Maximum gross pile weight 1500kg 2000kg
Electrical power load 22 kW 30 kW
Model 1900 (75")
Maximum reel diameter: end-user's preference
Maximum web width: end-user's preference
Maximum linear web speed: 300 meters/minute
Maximum cutting frequency:
simplex cutter: 400 cuts per minute
duplex cutter: 400 x 2 cuts per minute
Maximum knife load: 600 GSM
Sheet length range: 400mm - 1600mm
Maximum gross pile height: 1800mm
Maximum gross pile weight: 2500kg
Electrical power load: 40 kW
Model 2800 (110")
Maximum reel diameter: end-user's preference
Maximum web width: end-user's preference
Maximum linear web speed: 300 meters/minute
Maximum cutting frequency:
simplex cutter: 400 cuts per minute
duplex cutter: 400 x 2 cuts per minute
Maximum knife load: 600 GSM
Sheet length range: 400mm - 1500mm
Maximum gross pile height: 2500mm
Maximum gross pile weight: 2500kg
Electrical power load: 50 kW
Maximum reel diameter: end-user's preference
Maximum web width: end-user's preference
Maximum linear web speed: 300 meters/minute
Maximum cutting frequency:
simplex cutter: 400 cuts per minute
duplex cutter: 400 x 2 cuts per minute
Maximum knife load: 600 GSM
Sheet length range: 400mm - 1600mm
Maximum gross pile height: 1800mm
Maximum gross pile weight: 2500kg
Electrical power load: 40 kW
Model 2800 (110")
Maximum reel diameter: end-user's preference
Maximum web width: end-user's preference
Maximum linear web speed: 300 meters/minute
Maximum cutting frequency:
simplex cutter: 400 cuts per minute
duplex cutter: 400 x 2 cuts per minute
Maximum knife load: 600 GSM
Sheet length range: 400mm - 1500mm
Maximum gross pile height: 2500mm
Maximum gross pile weight: 2500kg
Electrical power load: 50 kW
FLEXO-RULING MACHINE - converts paper from roll form to ruled sheet
form. Rolls of paper on the Unwind Stand are drawn into the Ruling/Printing
Section where lines are ruled in the web and pulled into the Sheeting Unit
where they are cut into sheets and conveyed by the Overlapping Delivery
Section into the Pile Table for stacking. Ruled/printed sheets are then ready for
downstream converting into any type of stationery products. Available in
various working widths.
Model 1100 (43")
Maximum roll diameter: 1400mm
Maximum roll width: 1120mm
Maximum printing width: 1070mm
Maximum sheet length: 900mm
Minimum sheet length: 510mm
Maximum linear speed (no print): 250 meters per minute
Maximum cutting frequency: (no print): 400 cuts per minute
Gross pile height: 1200mm
Electrical power requirement: 10 kW
Net weight: 7500kg
form. Rolls of paper on the Unwind Stand are drawn into the Ruling/Printing
Section where lines are ruled in the web and pulled into the Sheeting Unit
where they are cut into sheets and conveyed by the Overlapping Delivery
Section into the Pile Table for stacking. Ruled/printed sheets are then ready for
downstream converting into any type of stationery products. Available in
various working widths.
Model 1100 (43")
Maximum roll diameter: 1400mm
Maximum roll width: 1120mm
Maximum printing width: 1070mm
Maximum sheet length: 900mm
Minimum sheet length: 510mm
Maximum linear speed (no print): 250 meters per minute
Maximum cutting frequency: (no print): 400 cuts per minute
Gross pile height: 1200mm
Electrical power requirement: 10 kW
Net weight: 7500kg

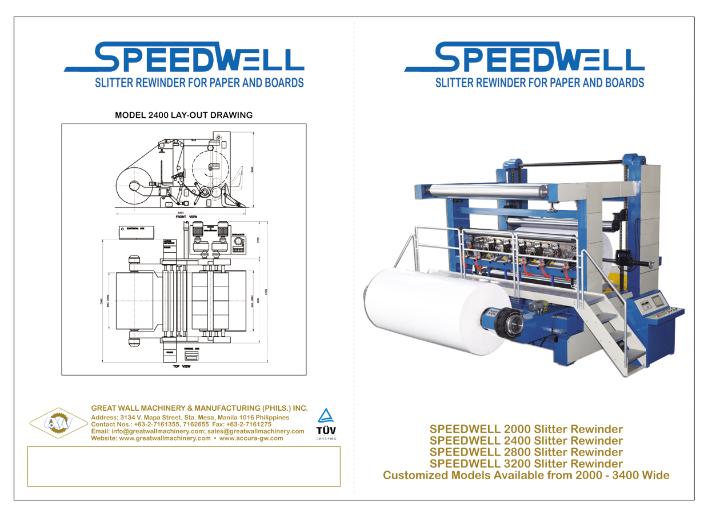

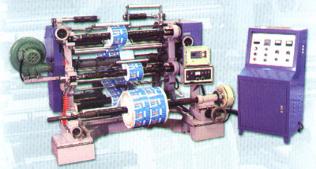

SLITTER REWINDERS - converts big to small rolls, bad to good rolls of
paper, films and foils with choices of Center or Surface Driven mechanism.
Model C1000 (40") Center-Driven
Maximum unwind width: 1000mm
Maximum unwind diameter: 600mm
Rewind width: 50mm - 1000mm
Maximum rewind diameter: 420mm
Speed: 0 - 150 meters/minute
Main motor: 4 HP
Unwind shaft: 3" air expanding shaft
Unwind tension controller: Nireco Japan
Linear positioning controller: Nireco Japan
Applications: OPP, PE, PP, PET, CPP,
PS, PVC, Cellophane
and various film materials
Model S1000 (40") Surface-Driven
Unwind width: 300mm - 1000mm
Maximum unwind diameter: 1000mm
Rewind width: 50mm - 1000mm
Maximum rewind diameter: 800mm
Speed: 0 - 250 meters/minute
Main motor: 5 HP
Rewind motor: 7.5 HP
Edge trim disposal blower: 1 HP
Unwind shaft: 3" air expanding shaft
Unwind tension controller: Nireco Japan
Linear positioning controller: Nireco Japan
Applications: OPP, PE, PP, PET, CPP,
PS, PVC, Cellophane, and
various film materials, including paper.
paper, films and foils with choices of Center or Surface Driven mechanism.
Model C1000 (40") Center-Driven
Maximum unwind width: 1000mm
Maximum unwind diameter: 600mm
Rewind width: 50mm - 1000mm
Maximum rewind diameter: 420mm
Speed: 0 - 150 meters/minute
Main motor: 4 HP
Unwind shaft: 3" air expanding shaft
Unwind tension controller: Nireco Japan
Linear positioning controller: Nireco Japan
Applications: OPP, PE, PP, PET, CPP,
PS, PVC, Cellophane
and various film materials
Model S1000 (40") Surface-Driven
Unwind width: 300mm - 1000mm
Maximum unwind diameter: 1000mm
Rewind width: 50mm - 1000mm
Maximum rewind diameter: 800mm
Speed: 0 - 250 meters/minute
Main motor: 5 HP
Rewind motor: 7.5 HP
Edge trim disposal blower: 1 HP
Unwind shaft: 3" air expanding shaft
Unwind tension controller: Nireco Japan
Linear positioning controller: Nireco Japan
Applications: OPP, PE, PP, PET, CPP,
PS, PVC, Cellophane, and
various film materials, including paper.
REEL STANDS - for any unwinding applications.
MECHANICAL H-TYPE 4-ROLL HYDRAULIC 2-ROLL SHAFTLESS PNEUMATIC 4-ROLL SHAFTLESS
