Specification:
| GREAT WALL MACHINERY & MANUFACTURING (PHILIPPINES), INC. |

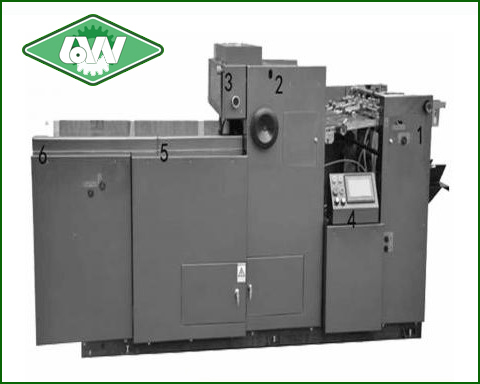

GWCF62-UV SPOT UV AND OVERALL COATING MACHINE
Features:
This machine is used for both flood and spot varnishing on light and thick paper with accurate and even
spot coating register. It is suitable for spot or full coating on words and graphics in books, advertisement
sheets, color paperboard to enhance its dimensional quality and surface protection. Integrated control with
PLC can provide easy operation & trouble shot during production. Fully automatic working process from
feeding to delivery. Safety for user is considered and widely used in the machine design. Famous
international brand of components like bearing, electrical parts are used in the critical functioning part of
the machine. It is very suitable to be used as a posting printing equipment within a digital printing solution.
Feeder: Multi-point high speed feeding with easy operation & adjustment.
2.Gripper transportation system. Reverse rotating roller control can lead to better varnish balancing.
Pneumatic varnish pump provides stable varnish supplement.
3.UV curing: High efficiency curing system with cooing system inside.
4. Stacker: Safety cover can also provide easy operation for user. Jogger with fan cooling can ensure the
order delivery.
Max. Paper Size(mm) 620X450MM
Min. Paper Size(mm) 210×260
Paper Weight Range 80～250g/㎡
Max. Speed 2000-6000p/hour
UV Lamp power 5．6KW*2/308V/50hz
Dimension 3600×1500×2000
Total Power/motor 9KW/0.75kw/220/50hz
Total Weight 1600KG
